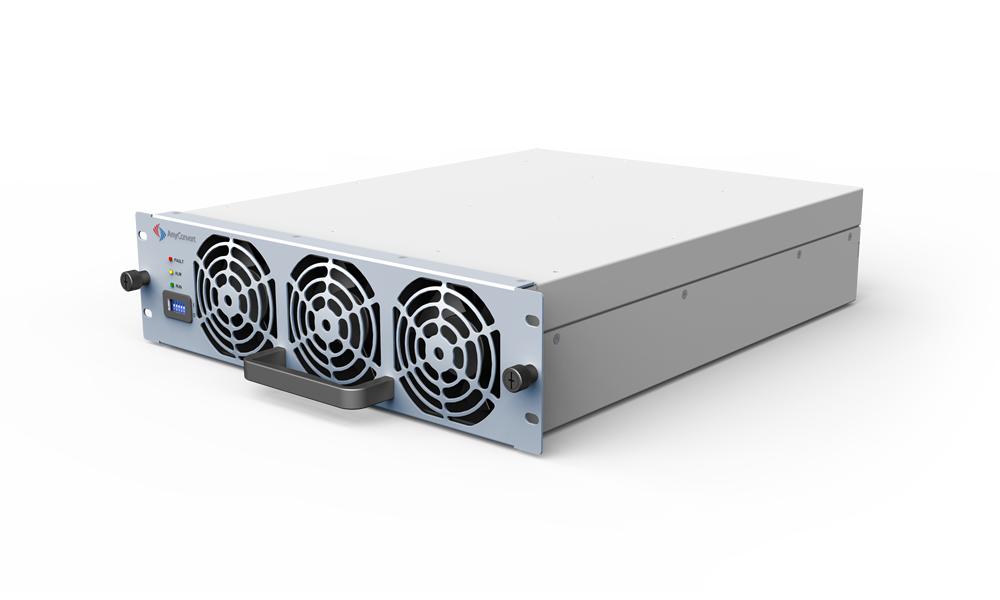

BEG1K075G

The BEG1K075G is a bidirectional AC/DC conversion module specially designed to meet the bidirectional conversion applications in V2G (Vehicle-to-Grid), energy storage charging, the secondary utilization of retired batteries and microgrids with multiple energy inputs. It boasts advantages such as a wide constant-power voltage range, high efficiency, high power factor, high power density, low electromagnetic radiation and interference, and high reliability, reaching the international leading level.

Consult

BEG1K075G
Home > Products > Power Module > Bidirectional ACDC
Product Features Application Scenarios Classification
Product Features
High Efficiency and Energy Saving
High Efficiency and Energy Saving

■ Wide constant-power voltage range：300Vdc~1000Vdc，constant-power output.
■ High efficiency：It is designed with all-SiC (Silicon Carbide), boasting an efficiency of 96% and being more energy-efficient.
■ High power efficiency： 36W/in3 / 49W/in3，save area.

Safety and Reliability
Safety and Reliability

■ Three-phase AC input without a neutral line：Eliminate the risk of excessive neutral current and simultaneously reduce the system cost.
■ Bidirectional energy flow：Bidirectional conversion between AC/DC and DC/AC, with a smooth transition when the power flow direction changes.
■ Isolation by high-frequency transformer：Ensure the high reliability of the bidirectional conversion module.

Intelligent and Convenient
Intelligent and Convenient

■ Fully digital control：Dual DSP design, with high-reliability control.
■ Support grid-connected and off-grid applications：Adapt to various application scenarios.

Widely Compatible
Widely Compatible

■ Wide AC voltage range： 260Vac～530Vac， compatible with various power grids.
■ Wide DC voltage range ： 150Vdc~1000Vdc，compatible with various power batteries and energy storage batteries.
■ Excellent EMC performance： Meet the requirements of EN61000-6-1 and EN61000-6-3 electromagnetic compatibility CLASS B.

Application Scenarios

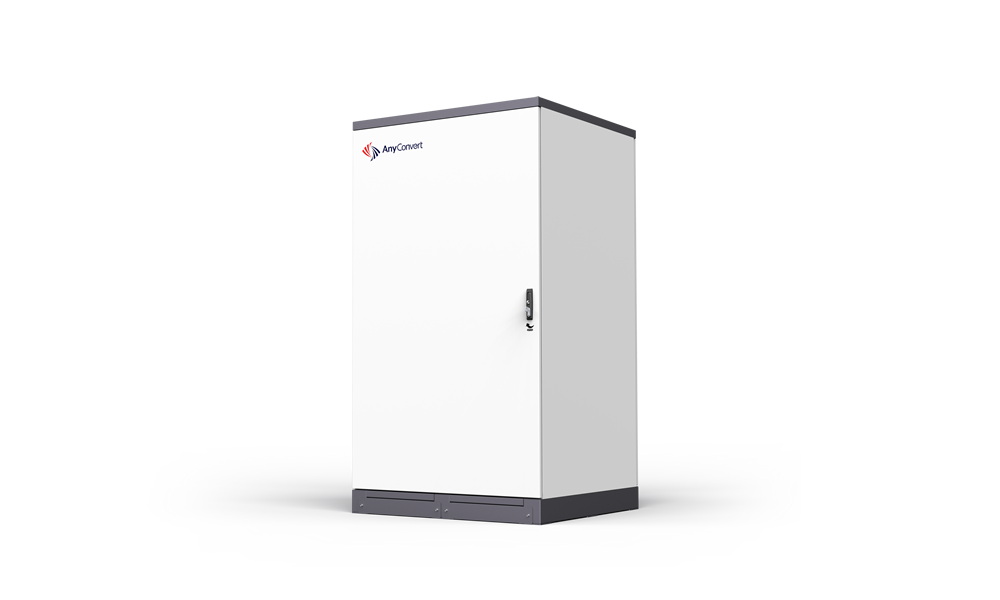

  • Energy storage system

    Energy storage system

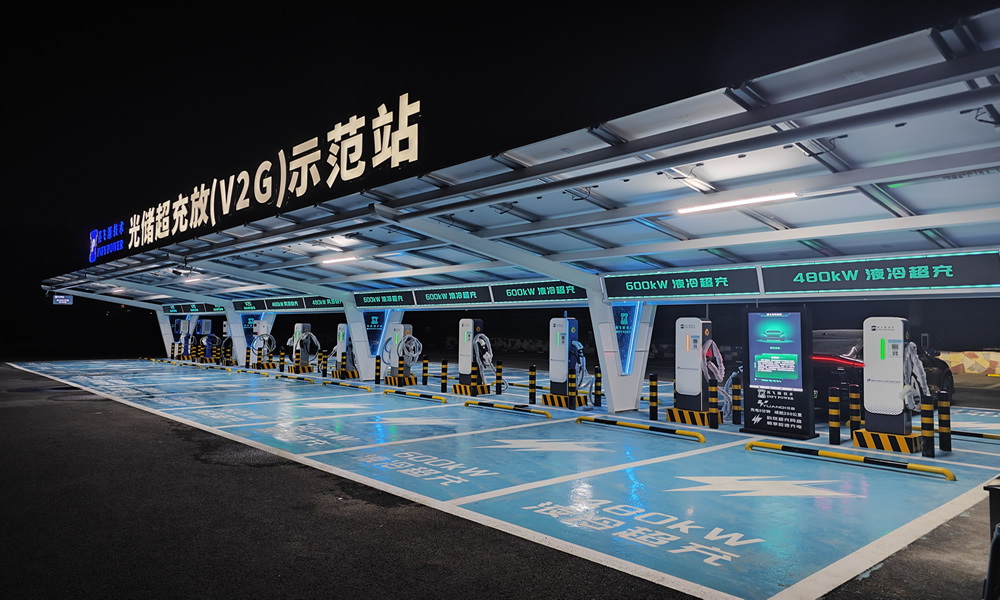

  • Photovoltaic-storage super charging and discharging system

    Photovoltaic-storage super charging and discharging system

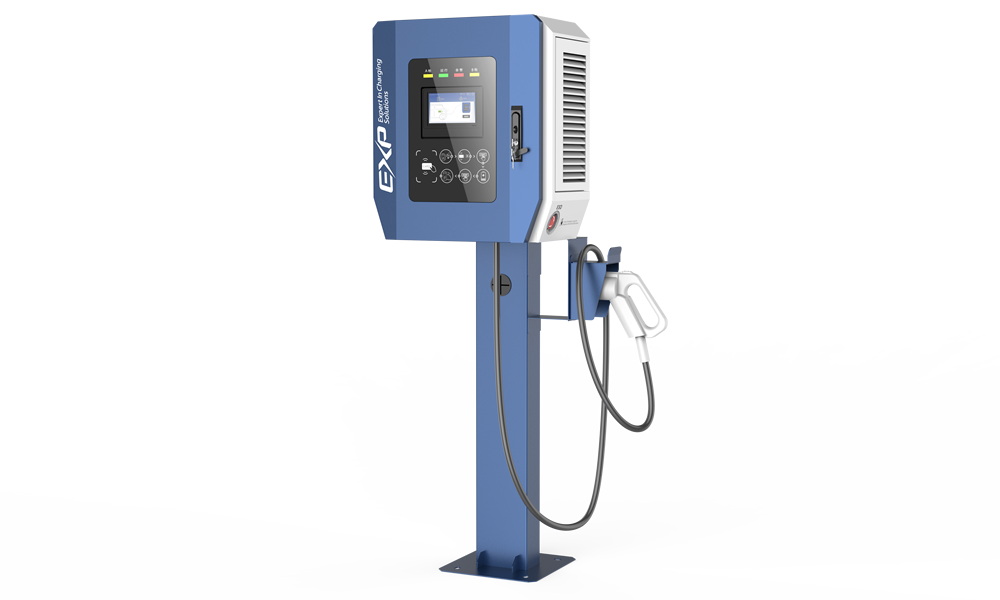

  • V2G charging pile

    V2G charging pile

Classification
BEG1K075G

Working Conditions Rectification Mode Inversion Mode Appearance Others

Working Conditions

Operating Temperature -40℃～＋75℃，derating shall be applied when the temperature is above +55℃.
Relative Humidity ≤95％RH，condensation-free
Cooling Method Force air cooling
Altitude 2000m，derating should be considered when the altitude is above 2000 meters.


Rectification Mode

AC Input Rated Voltage 380Vac，3L+PE
Input CurrentRange 0~43A
Input Voltage/Frequency Range 260Vac～530Vac；45Hz～65Hz
Power Factor ≥ 0.99（full load output）
THD <5%（50%～100% full load output power）
DC Output Rated Power 22kW
Output Voltage 150Vdc~1000Vdc
Current Range 0~73.3A
Accuracy of Voltage Stabilization < ±0.5％
Accuracy of Current Stabilization ≤ ±1％（output load 20％～100％ range）
Efficiency Full Load Efficiency>96%，Peak Efficiency>97%
Switching time between rectification and inversion modes 10mS


Inversion Mode

DC Input DC Input Voltage 300Vdc~1000Vdc
DC Output Power 22kW constant-power output
Max Current 73.3A
AC Output Output AC Voltage & Output Power 260Vac～530Vac；320Vac～530Vacconstant-power output
Rated Power/Current 22kW /33.3A
Output AC Frequency 50Hz/60Hz
THD < 5％
Power Factor Settable，setting range 0.8～1，-0.8～-1
Efficiency Full Load Efficiency>96%，Peak Efficiency>97%


Appearance

Dimension 84mm（H）×300mm（W）×395mm（D）
Weight ≤16kg


Others

Connect Method CAN
MTBF >500,000h
Satisfied Standards TUV UL CE
