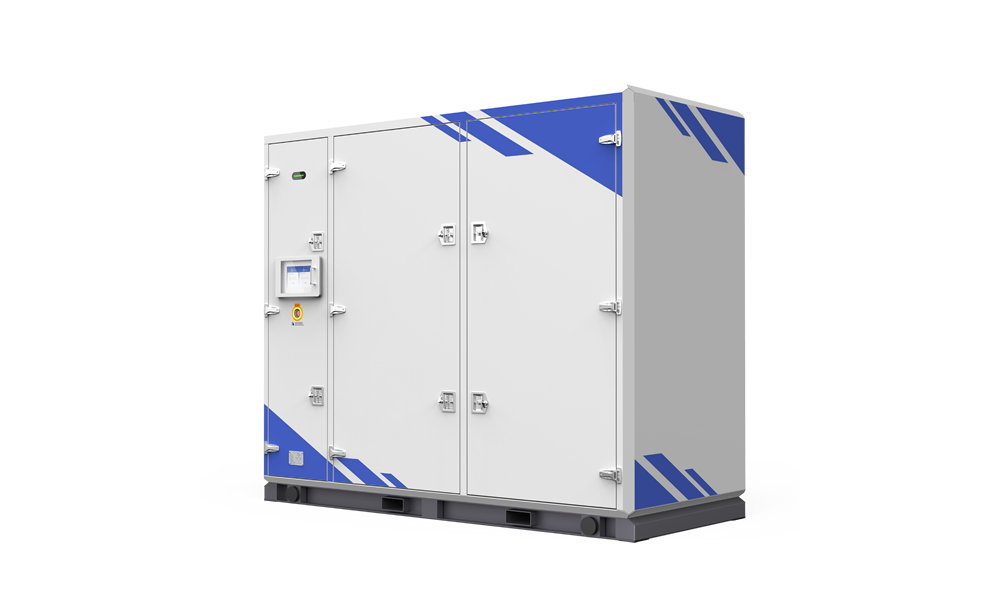

All-liquid-cooled ESS

Integrated Fully Liquid Cooling Isolated Energy Storage System uses liquid cooling battery PACK and liquid cooling PCS design, with excellent heat dissipation. It supports long-term 1C rate charging and discharging, meeting the needs of impact load scenarios. The internal PCS high-frequency transformer isolation eliminates the need for additional isolation transformers; it supports the integration or output of new energy sources such as diesel generation, photovoltaic, and charging piles, and can be applied in harsh environments such as factories and construction sites, providing power support for impact loads such as mixers and air compressors. It also combines with diesel generation to improve the operating efficiency of diesel generators and can provide temporary power supply for construction sites and residential life.

Consult

All-liquid-cooled ESS
Home > Products > ESS
Product Features Classification
Product Features
Safe and Reliable
Safe and Reliable

■ Fully liquid cooling design with high protection level, suitable for harsh environments.
■ High-frequency transformer isolation inside PCS, safe and reliable, with high conversion efficiency.

Flexible Application
Flexible Application

■ Integrated cabinet design, pre-assembled before leaving the factory, simple deployment and installation.
■ Supports 1C discharge, meeting the power demand of high-power impact loads.
■ Supports hybrid diesel-storage, saving fuel costs and extending the life of diesel generators.

Efficient Operation
Efficient Operation

■ Liquid cooling PACK and liquid cooling PCS design, excellent heat dissipation, low energy consumption.
■ Battery liquid cooling, low cell temperature difference, longer cycle life.
■ Use third-generation semiconductor SiC devices, high conversion efficiency.

Intelligent Operation and Maintenance
Intelligent Operation and Maintenance

■ Real-time remote status monitoring, enabling fault early warning and localization.
■ Supports setting charging and discharging strategies for different scenarios.
■ Remote fault diagnosis and upgrades, simplifying on-site operation and maintenance.

Classification
All-liquid-cooled ESS

Battery Side AC Side System

Battery Side
Cell Type Lithium Iron Phosphate (LFP)/285Ah
Battery Configuration 2P192S
Rated Capacity 350kWh(175kWh"2)
Rated Voltage 614.4V
Voltage Range 537.6V-691.2V
PACK Quansty 4x2 Strings
Charge/Discharge Current 285A(1Cactual following system control strategy)
Depth of Discharge 95%DOD
AC Side
Rated Power 350kW(175KW*2)
Rated Voltage 380Vac/400Vac
Voltage Range 260Vac-530Vac
Rated Frequency 50Hz/60Hz
current THD <3%(50%-100%Rated Output Power)
Power Factor >0.99(50%-100%Rated Output Power)


System
Voitage System 380Vac,Three-phase Five-wire
Cell Cycle Life >6000 cycles
Isolation Internal Transformer High-frequency Isolation
Off-grid Optional STS for Automatic On-grid/Off-grid Switching
Communication Interface LAN/4G
Protection Level System IP54, Battery IP67
Operating Temperature -25℃-55℃(Derating above 45℃)
Operating Altitude ≤2000m(Derating above 2000m)
System       Dimensions(WxDxH) 2850*1350*2450mm
Fire Protection Method Combustible Gas/Smoke Detection/Temperature Sensing/Aerosol
Thermal Control Method Battory Liquid Cooling.PCS Liquid Cooling
Noise Level ≤70dB
Weight ≤6500kg
Certification Complies with GB/T 36276,GB/T 34120,GB/T 34131
